Double Walled Waste Oil Storage Tanks
Any oil, crude or synthetic that has been contaminated with physical and/or chemical impurities. Contamination from being used as lubricants, hydraulic fluids, heat transfer fluids, buoyants and other similar purposes.
For more information on specific oils and what is defined as a ‘Used Oil’ refer to the Environmental Protection Agency (EPA) website.
Recycling of used oil or waste oil is not only good for the environment but makes good business sense. Oil can be used over and over again. Sometimes in the same form or re-purposed for different applications. For example, used motor oil can be refined and sold as motor oil again or reprocessed into furnace fuel oil. In the US, an estimated 380 million gallons of used oil are recycled each year.
A critical part of the recycling process is ensuring used oil is stored in accordance with the EPA’s used oil management standards. Get it wrong and the Environmental Protection Agency (EPA) could impose huge fines, restrictions and even close your business down.
NOTE: State regulations governing the management of used oil might be stricter than EPA’s so contact your state or local environmental agency to determine your best course of action.
Drums are a traditional form of oil storage, both new and used but come with significant risk, particularly in extreme weather conditions.
Apart from being a less space-efficient option, hot summer temperatures can make leaks more likely, particularly if the drums are exposed to the weather.
As it rains, water can be trapped on top of the barrels and submerge the bungs. As the drum heats and cools, air is exchanged between the air space above the waste oil and the atmosphere.
This can result in water that is sitting on top of the bungs being pulled into the oil, ultimately settling at the bottom of the barrel and raising the overall fluid level. As the process continues and more water is accumulated, the barrel can become deformed and push oil out of the bungs, causing a potentially harmful and expensive spill.
Aboveground double wall tanks are a modern day solution for the safe storage and transfer of waste oil. A modern day solution that complies with the EPA’s used oil management standards as detailed in Title 40 of the Code of Federal Regulations Part 279.

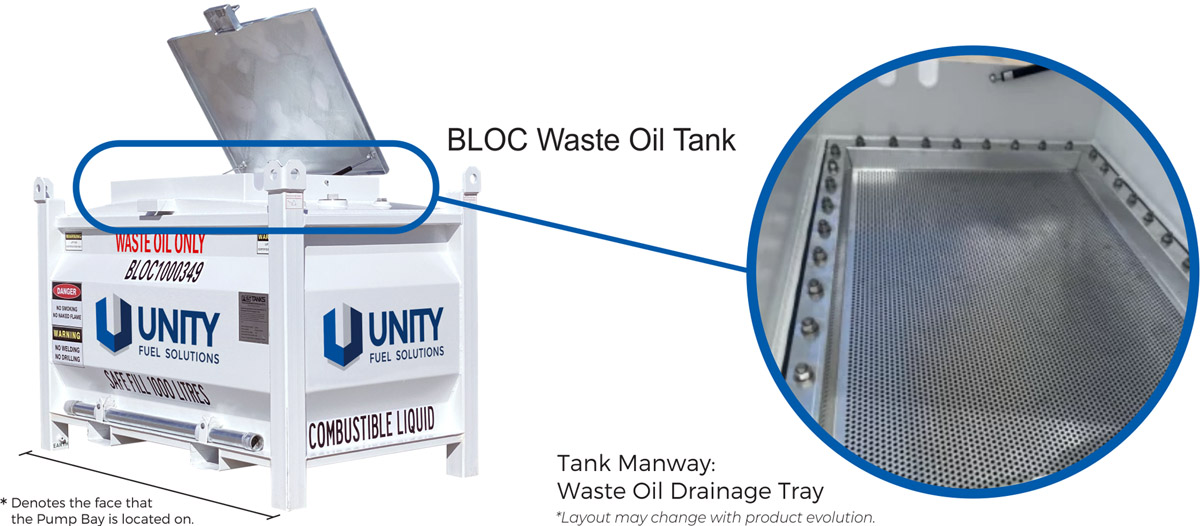

Our aboveground waste oil tanks are manufactured using a double-walled construction, essentially a tank within a tank.
This integral secondary containment system creates an internal self-bunded solution and ensures traditional bund wall containment areas are no longer required.
WASTE OIL Double-Walled Tank = 100% Mild Steel Primary Tank + 10% interstitial space + Secondary Mild Steel Outer Tank which equates to a bunded area of 110% of the storage tanks capacity. This complies with all secondary containment tank requirements for aboveground storage tanks.
Safe Fill Level
|
264 US Gallons |
Capacity
|
322 US Gallons |
Length
|
73″ |
Width
|
43″ |
Height
|
52″ |
Bare Weight
|
1,918 lbs |
Bafflle
|
Yes |
Safe Fill Level
|
660 US Gallons |
Capacity
|
726 US Gallons |
Length
|
90″ |
Width
|
66″ |
Height
|
52″ |
Bare Weight
|
2,712 lbs |
Bafflle
|
Yes |
Safe Fill Level
|
1,189 US Gallons |
Capacity
|
1,268 US Gallons |
Length
|
109″ |
Width
|
90″ |
Height
|
52″ |
Bare Weight
|
3,836 lbs |
Bafflle
|
Yes |
Safe Fill Level
|
1,585 US Gallons |
Capacity
|
1,638 US Gallons |
Length
|
141″ |
Width
|
90″ |
Height
|
52″ |
Bare Weight
|
4,740 lbs |
Bafflle
|
Yes |
Safe Fill Level
|
2,642 US Gallons |
Capacity
|
3,037 US Gallons |
Length
|
239″ |
Width
|
96″ |
Height
|
51″ |
Bare Weight
|
9,811 lbs |
Bafflle
|
Yes |
Safe Fill Level
|
2,969 US Gallons |
Capacity
|
3,128 US Gallons |
Length
|
118″ |
Width
|
96″ |
Height
|
114″ |
Bare Weight
|
10,637 lbs |
Pump Bay
|
Yes |
Safe Fill Level
|
7,753 US Gallons |
Capacity
|
8,163 US Gallons |
Length
|
239″ |
Width
|
96″ |
Height
|
114″ |
Bare Weight
|
16,645 lbs |
Pump Bay
|
Yes |
Safe Fill Level
|
17,322 US Gallons |
Capacity
|
18,223 US Gallons |
Length
|
480″ |
Width
|
96″ |
Height
|
114″ |
Bare Weight
|
29,917 lbs |
Pump Bay
|
Yes |
*Conditions apply. Some features standard, some optional extras, depending on product range. Custom colors, coatings, dimensions and refueling equipment packages are available upon request.
