HEDRA TANKS

Cube-Style Stationary Fuel Storage Tanks

HEDRA ‘Cube Style’ Stationary Fuel Tanks are a value-engineered solution for the storage and dispensing of diesel, gasoline and lubricant oils
– from 276 to 2,642 gallons.

They offer a flexible solution to storing combustible liquid as well as improving fuel dispensing and management solutions. A practical stationary design ensures a fast, easy and convenient installation in any location, indoors or outdoors.

HEDRA TANKS ARE A VALUE-ENGINEERED FUEL STORAGE SOLUTION

These modular units ensure fast and easy transportation to site, with minimal site works or preparation required. A place, fill-and-pump installation process offering versatility and speed on commissioning.

The freestanding ‘cube style’ design allows for 360° tank viewing and inspection. High-grade paint finish ensures longer durability in the elements.

DURABLE STATIONARY DESIGN WITH DOUBLE-WALL CONTAINMENT FOR ADDED SAFETY AND SECURITY.

Our double-walled tanks are designed as integral secondary containment and therefore do not require independent bunds for leak containment. Double-walled tank = SFL primary tank + interstitial space + secondary external tank.




PRODUCT COMPATIBILITY

Diesek Fuel Tank  DIESEL     Gasoline Fuel Tank  GASOLINE    Lubricant Fuel Tank  LUBRICANTS     Solvent Storage Tank  SOLVENTS

EVERY UNITY FUEL SOLUTIONS STORAGE TANK COMES WITH COMPLETE PEACE-OF-MIND…



STANDARD FEATURES

  • Designed for stationary storage of product.
  • Meets UL-142, ULC-S601-14 compliance as standard.
  • Double-walled tank construction consists of a 4mm primary steel tank and a 4mm secondary steel tank.
  • Baffled internally for structural integrity and to reduce product movement.
  • Accessible and removable tank manway for internal tank maintenance and cleaning.
  • Recessed spill box area under lockable lid on gas struts to secure transfer pump.
  • Sectional cut-outs on sides of spill box to allow
    flexible hoses or pipework to external requirements (i.e: generators).
  • Complete with aluminium gauged dipsticks,
    1 x galvanized updraft vent breather system and multiple port fittings.
  • Air pressure tested prior to leaving our factory.
    Mobile and modular design allows for ease of transportation when empty.
  • External ‘WHITE’ paint finish as standard. Other colour options are available upon request. *
  • Appropriate safety labels and decals supplied as standard.
  • Tie down/lifting points at each corner.
  • 2 x forklift pockets to all sides.


*Conditions apply. Some features standard, some optional extras, depending on product range.
Custom colours, coatings, dimensions and refuelling equipment packages are available upon request.

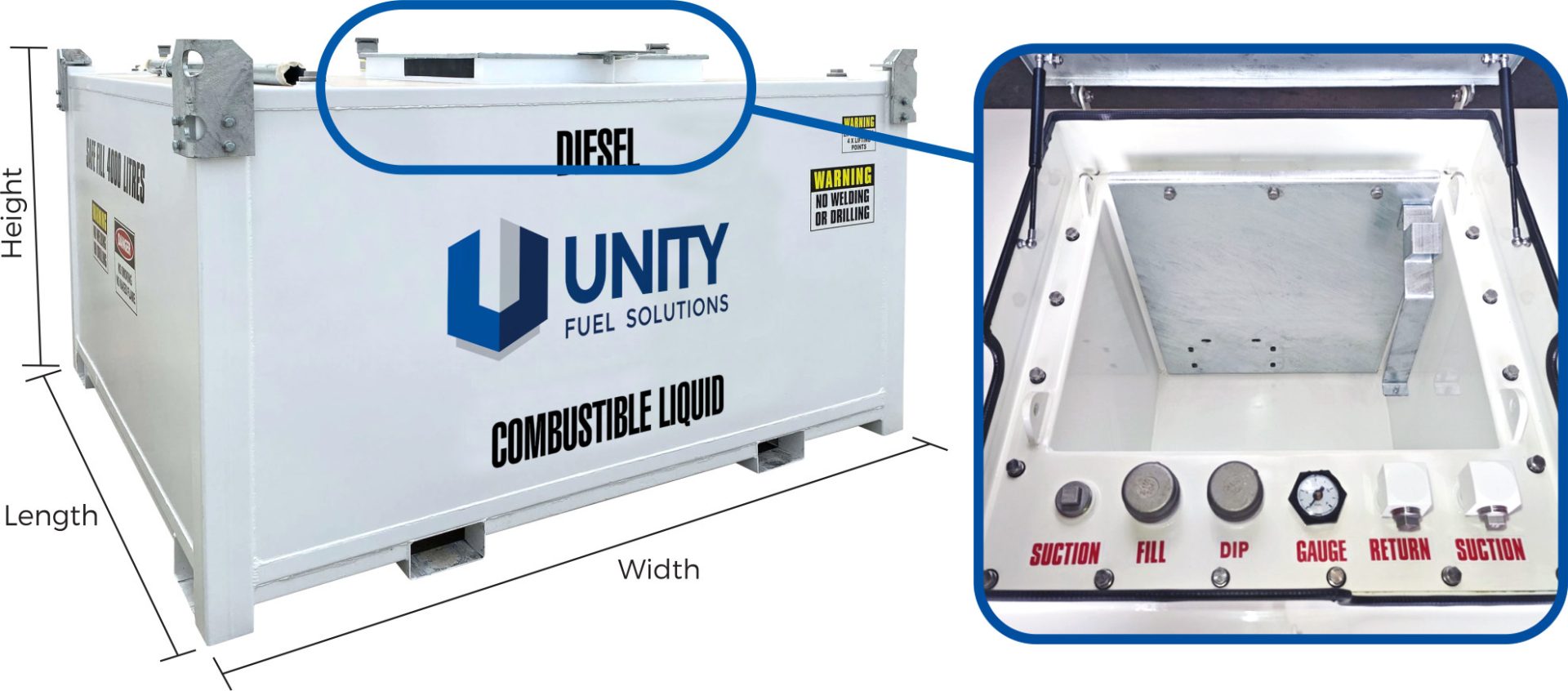

MANWAY (INSIDE LID)

  • 1 x 2” Fill Point
  • 1 x 2” Dip Point
  • 1 x 3” Free port
  • 3 x 2” Suction Ports
  • 3 x 1-1/2 ” Return Ports

Arrangement/set-up dependent on tank size*

MOBILE AND MODULAR

  • Practical and efficient ‘cube style’
    modular design
  • 2 x forklift pockets to all sides
  • Tie down/lifting points at each corner
  • Tanks can be stacked 4 high empty

EXTERIOR OF TANK

  • 1 x 2” Interstitial Dip / Vent
  • 1 x 2” Vent Port
  • 1 x 3” Free port
  • 4 x 2” Free ports

Arrangement/set-up dependent on tank size*


HEDRA ‘Cube-style’ Stationary Fuel Tanks For Sale

HEDRA 1100
274 Gallon Cube-style Stationary Fuel Storage Tank
Safe Fill Level

274 US Gallons

Capacity

291 US Gallons

Length

54″

Width

43″

Height

50″

Bare Weight

1,360 lbs

HEDRA 2250
554 Gallon Cube-style Stationary Fuel Storage Tank
Safe Fill Level

554 US Gallons

Capacity

594 US Gallons

Length

90″

Width

43″

Height

50″

Bare Weight

1,991 lbs

HEDRA 3300
818 Gallon Cube-style Stationary Fuel Storage Tank
Safe Fill Level

818 US Gallons

Capacity

872 US Gallons

Length

90″

Width

61″

Height

50″

Bare Weight

1,429 lbs

HEDRA 4500
1,122 Gallon Cube-style Stationary Fuel Storage Tank
Safe Fill Level

1,122 US Gallons

Capacity

1,189  US Gallons

Length

90″

Width

82″

Height

50″

Bare Weight

3,131 lbs

HEDRA 5500
1,374 Gallon Cube-style Stationary Fuel Storage Tank
Safe Fill Level

1,374 US Gallons

Capacity

1,453 US Gallons

Length

98″

Width

90″

Height

50″

Bare Weight

3,377 lbs

HEDRA 6600
1,651 Gallon Cube-style Stationary Fuel Storage Tank
Safe Fill Level

1,651 US Gallons

Capacity

1,744 US Gallons

Length

117″

Width

90″

Height

50″

Bare Weight

3,904 lbs

HEDRA 8800
2,205 Gallon Cube-style Stationary Fuel Storage Tank
Safe Fill Level

2,205 US Gallons

Capacity

2,325 US Gallons

Length

154″

Width

90″

Height

50″

Bare Weight

4,822 lbs

HEDRA 11000
2,642 Gallon Cube-style Stationary Fuel Storage Tank
Safe Fill Level

2,642 US Gallons

Capacity

2,906 US Gallons

Length

192″

Width

90″

Height

50″

Bare Weight

5,820 lbs


Contact us for alternative capacities and customization options.
