Aviation Fuel Storage Tanks

Fuel Storage Tanks for Avgas or Jet A1

(USA)

Unity Fuel Solutions’ Aviation fuel storage tanks are a self-contained aboveground fuel storage tank and fuel management solution for aviation fuel – from 264 to 28,372 gallons.

If you’re involved in the aviation industry you understand that the cleanliness and quality of aviation fuel is vital to the safety of the aircraft, passengers and crew.

It is vital to store aviation fuel only in specialists tanks  specifically designed for Aviation Gasoline (AVGAS) or Turbine Fuel / Jet Fuel (Jet A1). That is why we designed and developed our aboveground double wall aviation fuel storage tanks range.

A speciality product built for the airline industry.

AVIATION FUEL STORAGE REGULATIONS

In the United States, if you store over 250 US gallons of fuel (aboveground) for commercial purposes you must ensure it is in a storage vessel that is double-walled. This goes for storing aviation fuel in any location, from commercial airfields to private airstrips.

Some states may allow a single skin storage tank but that must be contained within a self-contained bunded (upstand) construction for spillage containment.

Bunded areas should be sized to hold 110% of the capacity of the largest storage tank and are traditionally constructed from concrete or masonry adding to project costs and build times.

UNITY AVIATION FUEL TANKS REMOVE THE NEED FOR TRADITIONAL BUND WALL CONSTRUCTION AND CONTAINMENT

Our AVIATION series aboveground fuel tanks are manufactured using a double-walled construction, essentially a tank within a tank.

This integral secondary containment system creates an internal self-bunded solution and ensures traditional bund wall containment areas are no longer required.

AVIATION Double-Walled Tank = 100% Stainless Steel Primary Tank + 10% interstitial space + Secondary Mild Steel Outer Tank which equates to a bunded area of 110% of the storage tanks capacity. This complies with all secondary containment requirements for aboveground storage tanks.

OUR AVIATION TANKS COMPLY WITH ALL STATE AND FEDERAL ABOVEGROUND STORAGE TANK REGULATIONS AND FAA GUIDELINES



EVERY UNITY FUEL SOLUTIONS STORAGE TANK COMES WITH COMPLETE PEACE-OF-MIND…



AVOIDING THE RISK OF AVIATION FUEL CONTAMINATION

The number one priority for storing aviation fuel is to avoid contamination. By law, any part of the tank that could come into contact with aviation fuel must be stainless steel so that there is no danger of rust contamination.

Our tanks have a GR 304 stainless steel inner tank with GR 304 stainless steel pump lines and fittings as standard. This not only meets all safety requirements giving you complete peace of mind but also ensures a long-lasting and durable storage and refueling system.

Another big enemy of aviation fuel is water. The excess build-up of condensation within a storage tank can lead to fuel being comprised in two ways:

  1. Water and fuel being drawn from the storage tank and transferred to the aircraft.

  2. Water promoting the growth of microbes which degrade fuel quality over time. Contaminated fuel transferred to the aircraft.

Both potentially leading to catastrophic engine failure, something best avoided at all cost.

UNITY Aviation fuel tanks address these challenges in a few ways:

  1. A sloping 50:1 floor on the internal stainless tank ensures water build-up can be drained easily and regularly as part of a maintenance program.

  2. Baffle free means hassle free. UNITY AVIATION TANKS are made without an interior baffle. This removes the danger of water and equipment being caught within the internal design of the tank. Without a baffle, you lower the risks of potential problems in the future.

AVIATION FUEL MANAGEMENT SOLUTIONS

Our team has years of experience in the safe storage, handling and daily management of fuel within the aviation industry. We always take the time to fully understand your needs as each situation is unique to your requirements.

UNITY AVIATION TANKS OFFER A FAST, EASY AND CONVENIENT FUEL STORAGE AND REFUELING SOLUTION IN ANY LOCATION

PRODUCT COMPATIBILITY
  AVGAS       JET=A1

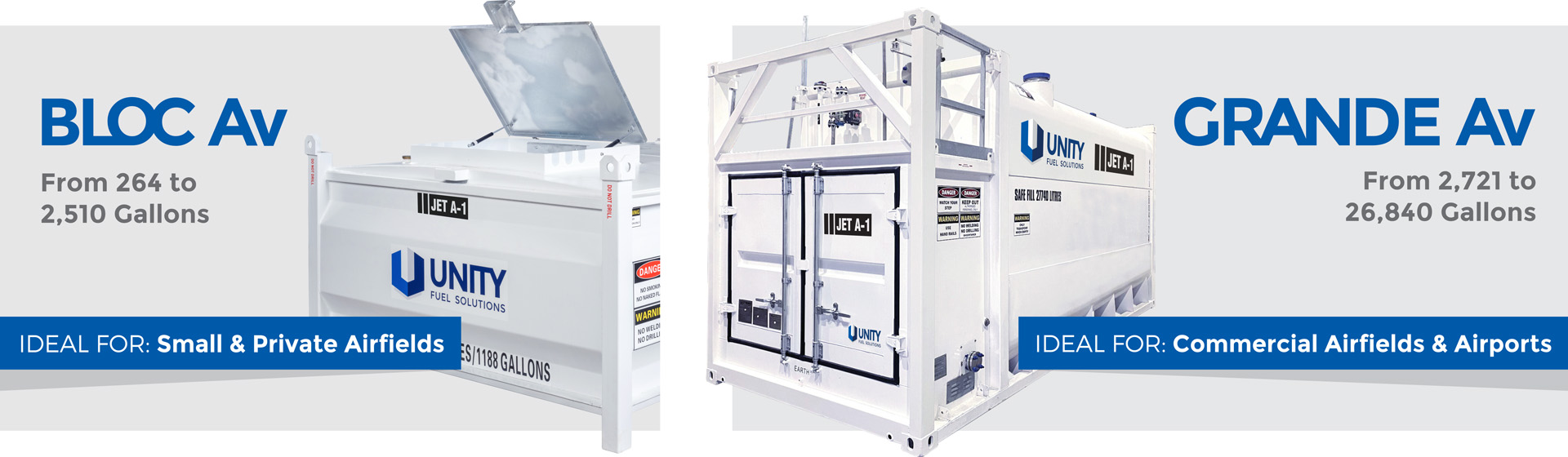

Aviation Fuel Storage Tanks Ranging
from 246 to 28,372 Gallons

BLOC Aviation Fuel Tanks

IDEAL FOR: Small & Private Airfields

264 us gallon Aviation Fuel Storage Tank
BLOC 1000 Av
264 Gallon Aviation Fuel Storage Tank
Safe Fill Level

264 US Gallons

Capacity

322 US Gallons

Length

73″

Width

43″

Height

52″

Bare Weight

1,918 lbs

Bafflle

Yes

660 us gallons Aviation Fuel Storage Tank
BLOC 2500 Av
660 Gallon Aviation Fuel Storage Tank
Safe Fill Level

660 US Gallons

Capacity

726 US Gallons

Length

90″

Width

66″

Height

52″

Bare Weight

2,712 lbs

Bafflle

Yes

1189 us gallons Aviation Fuel Storage Tank
BLOC 4500 Av
1,189 Gallon Aviation Fuel Storage Tank
Safe Fill Level

1,189 US Gallons

Capacity

1,268 US Gallons

Length

109″

Width

90″

Height

52″

Bare Weight

3,836 lbs

Bafflle

Yes

1585 us gallons Aviation Fuel Storage Tank
BLOC 6000 Av
1,585 Gallon Aviation Fuel Storage Tank
Safe Fill Level

1,585 US Gallons

Capacity

1,638 US Gallons

Length

141″

Width

90″

Height

52″

Bare Weight

4,740 lbs

Bafflle

Yes

2642 us gallons Aviation Fuel Storage Tank
BLOC 10000 Av
2,642 Gallon Aviation Fuel Storage Tank
Safe Fill Level

2,642 US Gallons

Capacity

3,037 US Gallons

Length

239″

Width

96″

Height

51″

Bare Weight

9,811 lbs

Bafflle

Yes


GRANDE Aviation Fuel Tanks

IDEAL FOR: Commercial Airfields & Airports

2,969 us gallon aviation fuel tank
GRANDE 12 Av
2,969 Gallon Aviation Fuel Storage Tank
Safe Fill Level

2,969 US Gallons

Capacity

3,128 US Gallons

Length

118″

Width

96″

Height

114″

Bare Weight

10,637 lbs

Pump Bay

Yes

7,753 us gallon aviation fuel tank
GRANDE 30 Av
7,753 Gallon Aviation Fuel Storage Tank
Safe Fill Level

7,753 US Gallons

Capacity

8,163 US Gallons

Length

239″

Width

96″

Height

114″

Bare Weight

16,645 lbs

Pump Bay

Yes

17,322 us gallon aviation fuel tank
GRANDE 68 Av
17,322 Gallon Aviation Fuel Storage Tank
Safe Fill Level

17,322 US Gallons

Capacity

18,223 US Gallons

Length

480″

Width

96″

Height

114″

Bare Weight

29,917 lbs

Pump Bay

Yes


STANDARD FEATURES

  • All tanks meet UL-142, ULC-S601-14 compliance as standard. Bloc Av 1000 – 6000 additional UN-31-A/Y compliance.
  • Double-walled structural design.
  • 6mm thick mild steel outer tank wall.
  • 6mm thick GR 304 stainless steel inner wall.
  • GR 304 stainless steel fuel lines, piping and fittings.
  • Floating suction (Grande Av only).
  • Overfill protection system (Grande Av only).
  • High level alarm (Ex-i – Intrinsic safe / Grande Av only).
  • Emergency venting.
  • Vent Pipe: Free Vent.
  • Pressure Vacuum (optional).
  • Fluid Level Dipstick.
  • Sloping 50:1 floor to collection sump with sampling facilities.
  • Sampling cabinet (supplied loose, Grande tanks only).

OPTIONS

  • GR 316 stainless steel upgrade.

*Conditions apply. Some features standard, some optional extras, depending on product range. Custom colors, coatings, dimensions and refueling equipment packages are available upon request.




MORE AVIATION FUEL STORAGE TANKS IN THE GRANDE Av RANGE

GRANDE 20 Av

4,663 GALLONS

GRANDE 38 Av

9,346 GALLONS

GRANDE 55 Av

15,303 GALLONS

GRANDE 75 Av

18,946 GALLONS

GRANDE 90 Av

22,711 GALLONS

GRANDE 100 Av

25,334 GALLONS

GRANDE 110 Av

28,372 GALLONS
