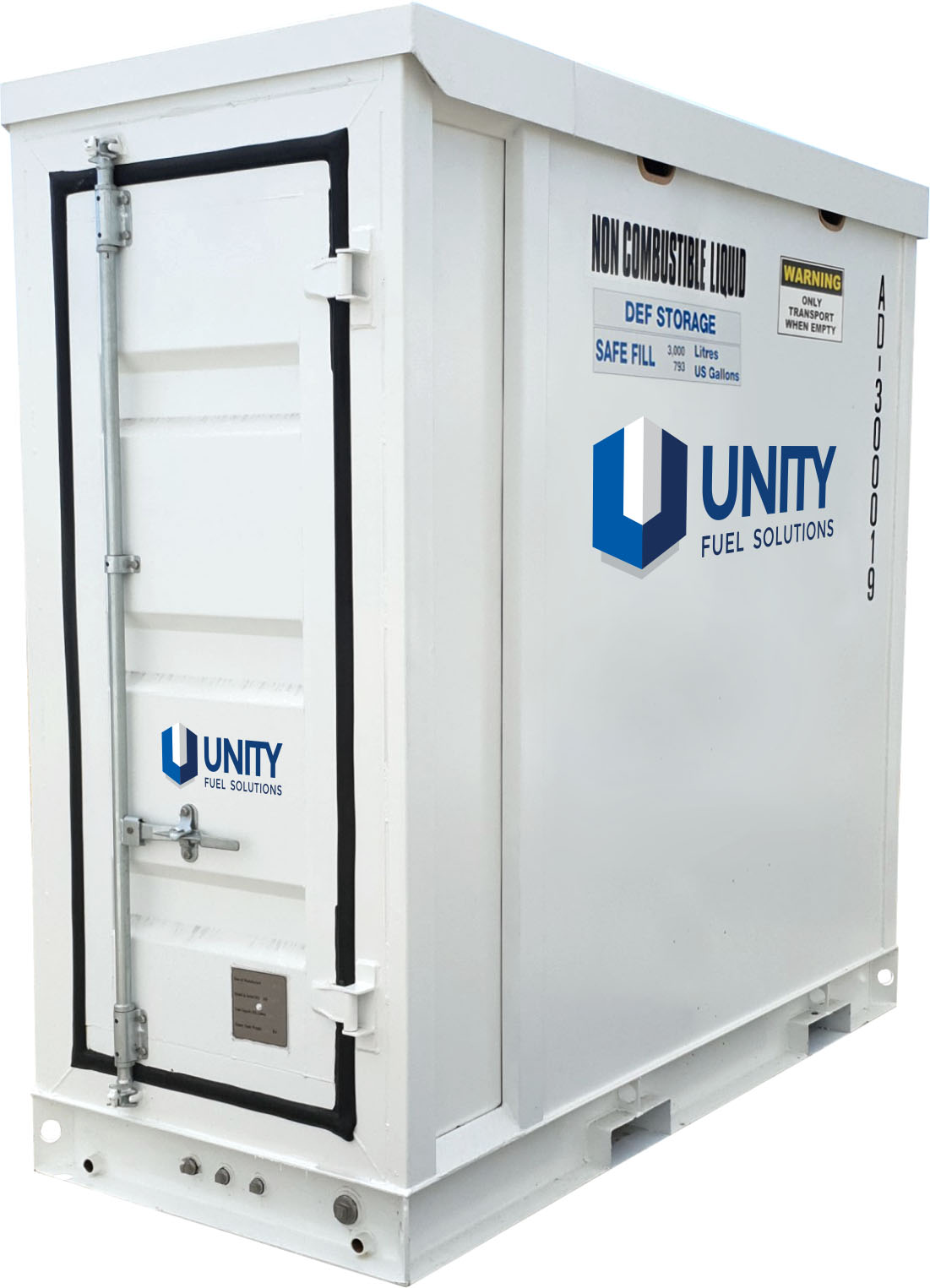

Bulk DEF Tanks

Diesel Exhaust Fluid Storage Tanks

Unity Fuel Solutions’ DEF Tanks are the best solution for the bulk storage and dispensing of Diesel Exhaust Fluid (DEF) – from 793 to 6,076 gallons.

Diesel Exhaust Fluid is a non-toxic, non-flammable, odourless and biodegradable additive designed to help diesel vehicles meet the latest exhaust emission regulations. It works in conjunction with a treatment system known as Selective Catalytic Reduction (SCR) and is used by an increasing number of vehicle manufacturers.

DEF is a premixed solution containing 32.5% high purity urea, and 67.5% deionized water. Whilst safe to handle, it can be corrosive for some metals. This corrosive nature ensures the need for DEF products to be transported, stored and pumped with the appropriate equipment.

UNITY DEF TANKS ENSURE THE SAFE STORAGE AND MANAGEMENT OF DIESEL EXHAUST FLUID TO YOUR END USER.

Unity DEF Tanks not only come with a double walled tank arrangement as standard but ensure all materials and pumping equipment are suitable for DEF products.

UPGRADE YOUR FUEL LOGISTICS AND REDUCE
EXHAUST EMISSIONS WITH A UNITY DEF TANK.




PRODUCT COMPATIBILITY

    DEF

bulk-def-storage-tank

EVERY UNITY FUEL SOLUTIONS STORAGE TANK COMES WITH COMPLETE PEACE-OF-MIND…



STANDARD FEATURES

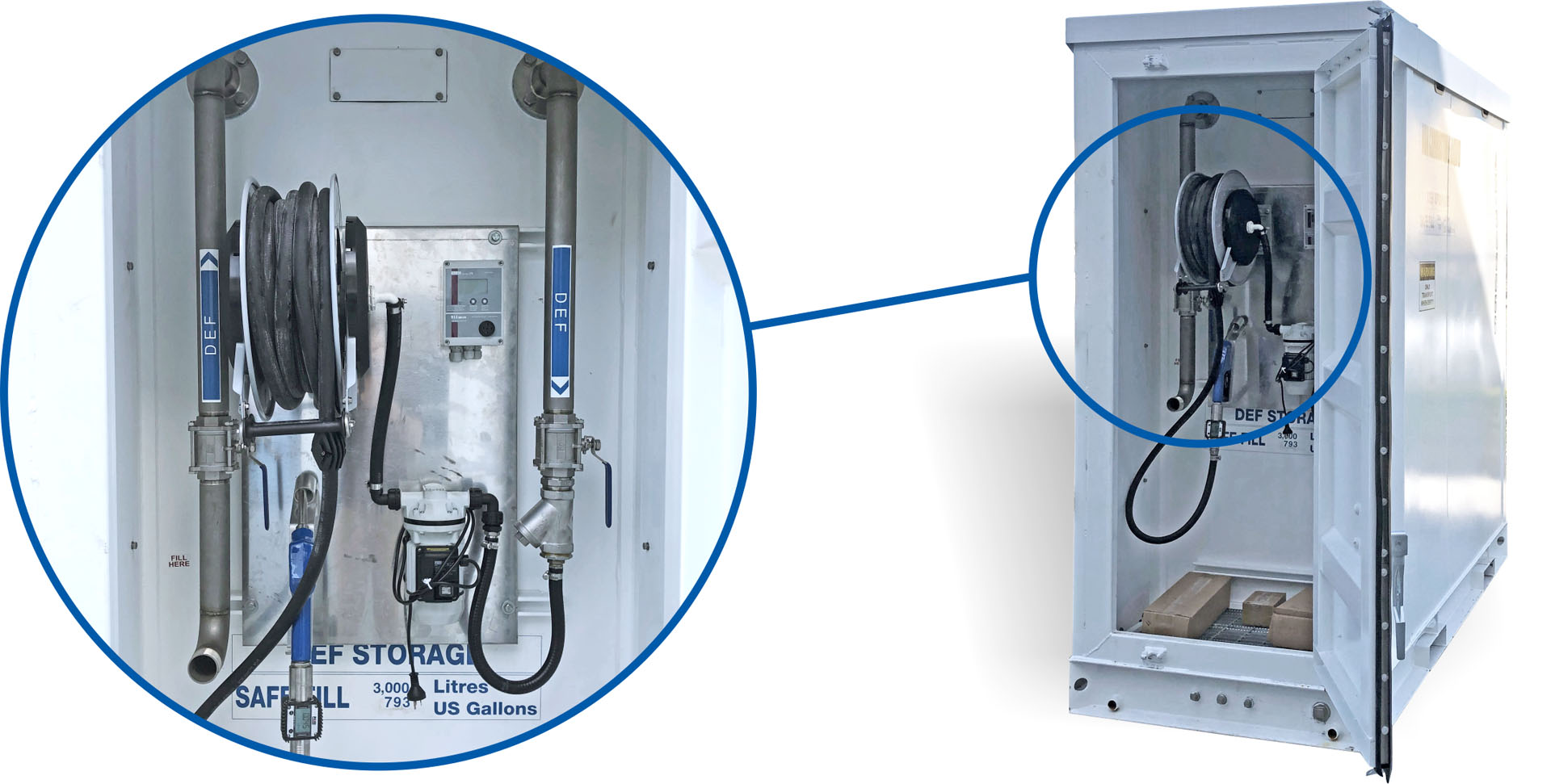

  • Double-walled design with lockable pump bay on front fascia
  • Stainless steel SS304 internal DEF tank with carbon steel outer tank
  • Mechanical overfill protection valve
  • Easy maintenance access to internal tank with removable lid
  • Forklift lifting points for easy relocation
  • Tie-down lugs in all corners
bulk-def-storage-tanks-detail

APPLICATIONS

  • Service Stations / Fuel Retailing
  • Trucking, Freight and Logistics (Depots)
  • Civil Engineering and Construction
  • Government and Council Infrastructure
  • Military transport
  • Marine applications

OPTIONAL EXTRAS

  • DEF Submersible pump or Transfer Pump
  • Electrical Switchboard
  • Dry Break Adaptor
  • Overfill alarm
  • Dispensing Equipment
  • Tank gauge with alarm outputs

Bulk DEF Tanks For Sale

DEF 3000
Bulk DEF Storage Tank
Safe Fill Level

793 Gallons

Capacity

835 Gallons

Length 101″
Width 44″
Height

101″

Bare Weight

3,964 lbs

DEF 5000
Bulk DEF Storage Tank
Safe Fill Level

1,321 Gallons

Capacity

1,394 Gallons

Length 160″
Width 45″
Height

100″

Bare Weight

5,203 lbs

DEF 10000
Bulk DEF Storage Tank
Safe Fill Level

3,038 Gallons

Capacity

3,198 Gallons

Length 156″
Width 90″
Height

99″

Bare Weight

7,280 lbs

DEF 20000
Bulk DEF Storage Tank
Safe Fill Level

6,076 Gallons

Capacity

6,396 Gallons

Length 274″
Width 90″
Height

99″

Bare Weight

11,244 lbs

Dimensions and volumes are nominal only. Alternative capacities available upon request. Larger volumes are able to be integrated into our GRANDE tank range. Check with UNITY FUEL SOLUTIONS on specifications. Remember to check with local authorities for compliance.


Contact us for alternative capacities and customisation options.
