2,906 GALLON ABOVEGROUND FUEL STORAGE TANK

GRANDE 12

The Unity Fuel Solutions’ GRANDE 12 aboveground fuel storage tank is the best solution for the bulk storage and dispensing of diesel, gasoline and lubricant oils, with a safe storage capacity up to 2,906 US gallons.

Grande 12 Specifications

Safe Fill Level

2,906 US Gallons

Capacity

2,991 US Gallons

Length

118″

Width

96″

Height

114″

Bare Weight

10,831 lbs

Pump Bay

Yes

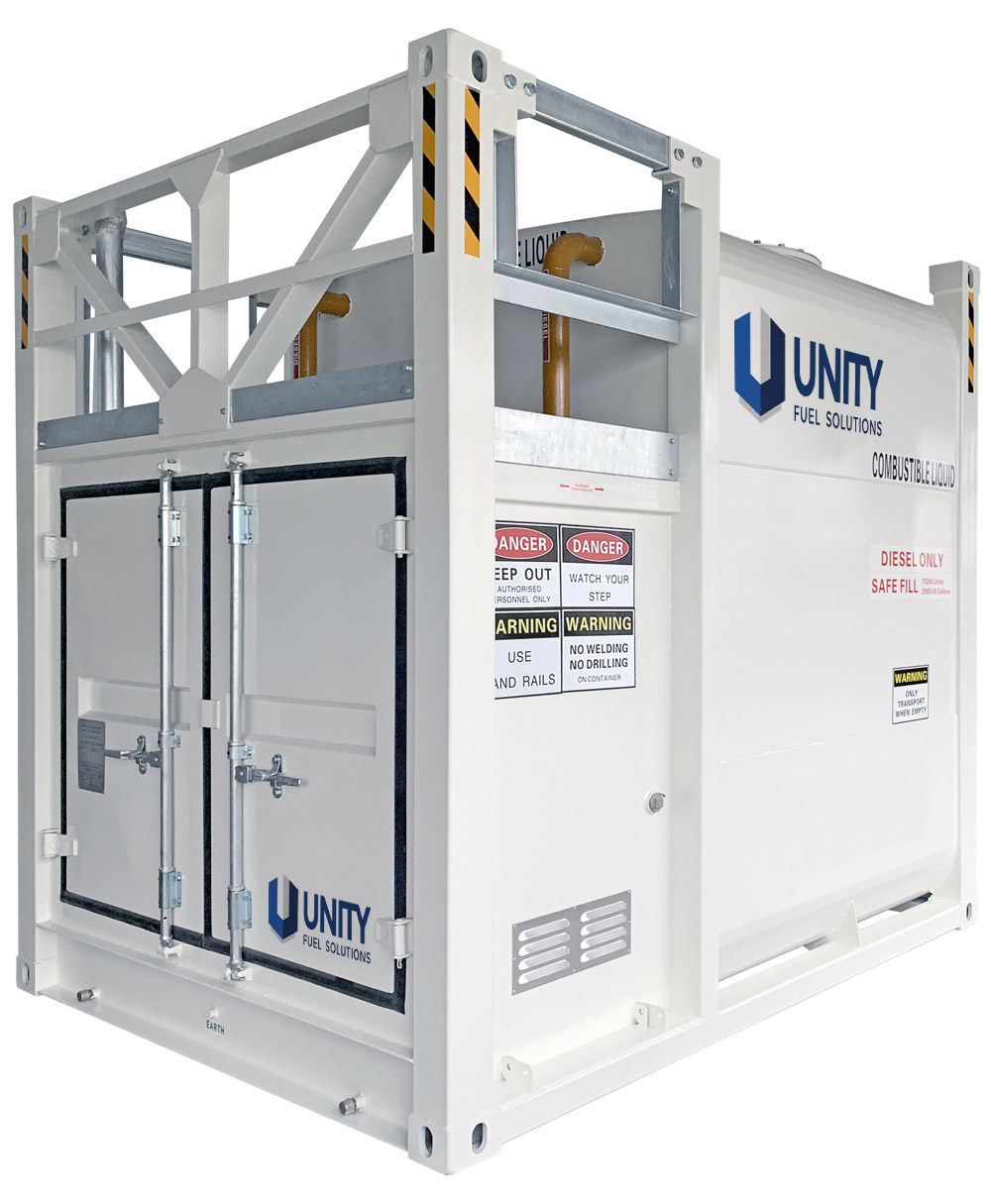

2969 gallon above ground fuel tank

PRODUCT COMPATIBILITY
Diesek Fuel Tank  Diesel      Gasoline Fuel Tank  Gasoline      Lubricant Fuel Tank  Lubricants     Solvent Storage Tank  Solvents


The GRANDE tank range is a premium above ground storage tank solution designed for harsh operating environments with minimal site preparation.

Pressed corners and a reinforced top means a robust tank for your fuel storage needs. The main points in this design are a curved tank roof finish, greater capacity for safe fill and the ability to see under the tank.

The Grande G12 fuel storage tank is constructed to an international ISO shipping container footprint for ease of transport and transfer. The 20′ footprint utilizes the container lock dimensions and ensures ease of transport, saving your business time and money.

MULTI COMPARTMENT TANK

GRANDE tanks can be supplied with ready-to-use pumps, reels, meters and filtration. Standard and custom build add-on compartments can be specified to hold lubricants, coolant or waste oil as required.

Multi products within same tank footprint are available if required. End mounted security cabinets can be fitted including steel or roller shutter doors and internal spillage trays, to house pipe work, pumps, gauging, alarms and controls.

GRANDE TANKS OFFER A FAST, EASY AND CONVENIENT HYDROCARBON STORAGE SOLUTION.

STANDARD FEATURES

INCOMING FUEL / PRODUCT

  • 80nb Tanker fill pipework.
    Fire safe flanged ball valve, camlock adaptor & cap.
  • Non return valve.
  • Hydraulic overfill valve with optional unload pump.
  • Internal pipe work serviceable.
  • High level alarm; hazardous rated & battery powered.

OUTGOING FUEL / PRODUCT

  • Anti-siphon valve (foot valve).
  • Pipework terminates under walkway with ANSI flanges.
  • 6″ and 4″ sockets in both manholes for the mounting of submersible pumps standard.
    Pump suction line including priming point plug.

PUMP BAY

  • Pump bay complete with water/product drain valves.
  • Internal access for hoses from pylon kits.
  • Pylon kits with counter weights (optional).
  • Lockable bund doors with rubber dust seal.
  • Access ladder to work platform mounted on left or right hand side.
  • Bund ventilations.
  • Front earth connection.
  • Built in safety hand rail system.
  • Dual 50mm side wall cavity sockets.

*Conditions apply. Some features standard, some optional extras, depending on product range. Custom colours, coatings, dimensions and refuelling equipment packages are available upon request.


INTERNATIONAL CERTIFICATIONS




STANDARD SPECIFICATION

  • Double-walled tank designed and constructed to UL-142 and ULC-S601-14 compliance as standard.
  • Supplied with all statutory signage.
  • Safe fill capacities from 2,906 – 28,319 gallons.
  • Curved tank roof finish externally.
  • Designed to ISO container specifications (20’/40’/48’/52’).
  • In-built tank access ladder and platform.
  • One manway access point per tank (min).
  • Updraft vent pipe.
  • Calibrated aluminium anodized dipstick.
  • Interstitial space monitoring point with anodized dip stick.
  • Audible overfill protection alarm.
  • 6″ and 4″ sockets for installation of submersible pumps.
  • Extra paint thickness based on 250-300 microns for extra protection during harsh climates.
  • Bunded cowling and dispensing area.
  • Dual hose high mast retractable units.
  • Lockable doors to pump bay and dispensing area.
  • Suitable for fuel farm configuration (master and slave).
  • Transportable via tilt tray, side loader or flatbed semi-trailer.

GET THE MOST OUT OF YOUR REFUELLING OPERATIONS

Your Grande tank is just the beginning. We offer upgrades to Smart Fuel Management Systems and Inline Filtration Units. Fully customised solutions to monitor usage, protect equipment and reduce downtime.

GRANDE DISPENSING OPTIONS

  • AC/DC electrical or engine driven dispensing equipment.
  • Bowser, dispenser units or retractable hose reel systems.
  • Heavy and / or light vehicle refueling.
  • Pump electrical switch box with start / stop / e-stop station.
  • Flow rates from 10.5gpm to 105gpm (105+gpm on request).
  • Bulk fuel dispensing unit (quick fill for onsite service trucks).
  • Fuel Management System compatible.
  • Outdoor payment terminal compatible (EFTPOS & credit card).

FLAMMABLE STORAGE

Please check the local regulation and install relevant emergency vent for flammable storage.

MULTI COMPARTMENTS TANK

We can design and build multiple compartments to hold different products within the same tank footprint. Store different fuel, lubricants, coolants, or waste oil in one footprint. Of course, conditions apply but you will be impressed with what we can do.

EVERY UNITY FUEL SOLUTIONS STORAGE TANK COMES WITH COMPLETE PEACE-OF-MIND



Fuel storage tanks in the UNITY GRANDE range:

Grande 12

2,906 Gallon Aboveground Fuel Storage Tank

7,753 Gallon above-ground Fuel Tank

Grande 30

7,753 Gallon Aboveground Fuel Storage Tank

7,753 Gallon above-ground Fuel Tank

Grande 68

17,322 Gallon Aboveground Fuel Storage Tank

Grande Range

View all Aboveground Fuel Storage Tanks


*NPB denotes ‘No Pump Bay’

GRANDE 16

Safe Fill Level: 4,111 Gallons
Capacity: 4,623 Gallons
Length: 158″
Width: 96″
Height: 114″
Tare: 13,625 lbs
Pump Bay: Yes

GRANDE 20 NPB

Safe Fill Level: 4,465 Gallons
Capacity: 4,700 Gallons
Length: 118″
Width: 96″
Height: 114″
Tare: 11,039 lbs
Pump Bay: No

GRANDE 23 NPB

Safe Fill Level: 5,944 Gallons
Capacity: 6,261 Gallons
Length: 158″
Width: 96″
Height: 114″
Tare: 13,933 lbs
Pump Bay: No

GRANDE 38 NPB

Safe Fill Level: 9,316 Gallons
Capacity: 6,261 Gallons
Length: 239″
Width: 96″
Height: 114″
Tare: 17,637 lbs
Pump Bay: No

GRANDE 40 NPB

Safe Fill Level: 11,624 Gallons
Capacity: 12,258 Gallons
Length: 239″
Width: 96″
Height: 138″
Tare: 20,283 lbs
Pump Bay: No

GRANDE 45

Safe Fill Level: 11,941 Gallons
Capacity: 12,575 Gallons
Length: 480″
Width: 96″
Height: 102″
Tare: 27,007 lbs
Pump Bay: Yes

GRANDE 55 FL

Safe Fill Level: 13,869 Gallons
Capacity: 14,529 Gallons
Length: 480″
Width: 96″
Height: 101″
Tare: 27,117 lbs
Pump Bay: Yes

GRANDE 55

Safe Fill Level: 15,282 Gallons
Capacity: 16,088 Gallons
Length: 480″
Width: 96″
Height: 101″
Tare: 28,219 lbs
Pump Bay: Yes

GRANDE 75 NPB

Safe Fill Level: 18,946 Gallons
Capacity: 19,942 Gallons
Length: 480″
Width: 96″
Height: 114″
Tare: 30,909 lbs
Pump Bay: No

GRANDE 80

Safe Fill Level: 20,814 Gallons
Capacity: 21,910 Gallons
Length: 576″
Width: 96″
Height: 114″
Tare: 35,605 lbs
Pump Bay: Yes

GRANDE 82

Safe Fill Level: 21,583 Gallons
Capacity: 22,745 Gallons
Length: 480″
Width: 96″
Height: 1140″
Tare: 35,384 lbs
Pump Bay: Yes

GRANDE 89 NPB

Safe Fill Level: 23,591 Gallons
Capacity: 24,832 Gallons
Length: 480″
Width: 96″
Height: 138″
Tare: 35,605 lbs
Pump Bay: No

GRANDE 90 NPB

Safe Fill Level: 22,637 Gallons
Capacity: 23,828 Gallons
Length: 576″
Width: 96″
Height: 114″
Tare: 36,046 lbs
Pump Bay: No

GRANDE 90

Safe Fill Level: 23,200 Gallons
Capacity: 24,423 Gallons
Length: 576″
Width: 96″
Height: 126″
Tare: 38,030 lbs
Pump Bay: Yes

GRANDE 100 NPB

Safe Fill Level: 25,271 Gallons
Capacity: 26,602 Gallons
Length: 576″
Width: 96″
Height: 126″
Tare: 38,471 lbs
Pump Bay: No

GRANDE 100

Safe Fill Level: 25,674 Gallons
Capacity: 27,025 Gallons
Length: 576″
Width: 96″
Height: 140″
Tare: 41,006 lbs
Pump Bay: Yes

GRANDE 110 NPB

Safe Fill Level: 28,319 Gallons
Capacity: 29,812 Gallons
Length: 576″
Width: 96″
Height: 140″
Tare: 41,667 lbs
Pump Bay: No

GRANDE 110

Safe Fill Level: 28,319 Gallons
Capacity: 29,812 Gallons
Length: 624″
Width: 96″
Height: 140″
Tare: 44,296 lbs
Pump Bay: Yes
