11,000 LITRE ABOVEGROUND FUEL STORAGE TANK

GRANDE 12

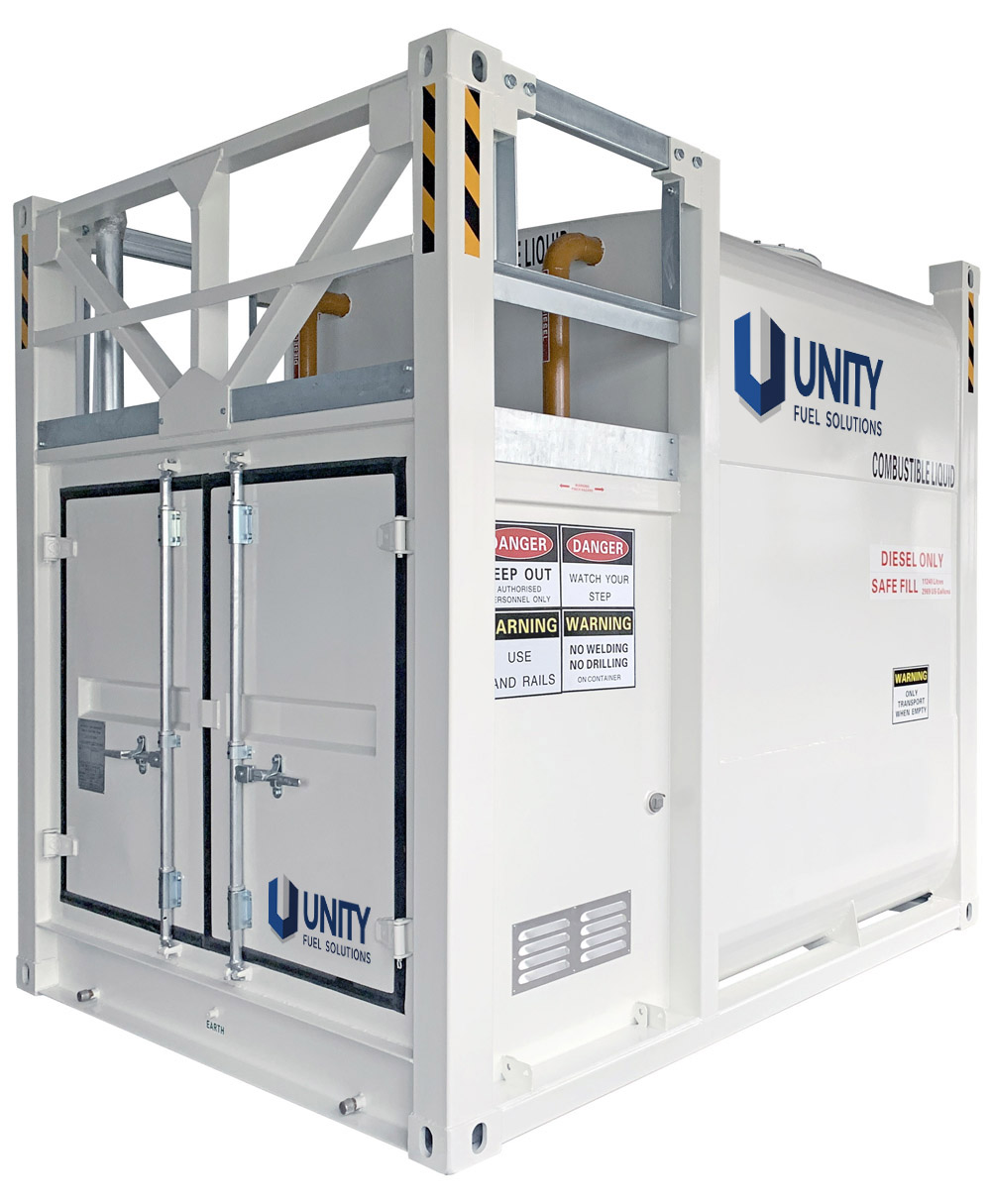

The Unity Fuel Solutions’ GRANDE 12 aboveground fuel storage tank is the best solution for the bulk storage and dispensing of diesel, gasoline and lubricant oils, with a safe storage capacity up to 11,000 litres.

Grande 12 Specifications

Safe Fill Level	11,000 Litres
Capacity	11,324 Litres
Length	2,991 mm
Width	2,438 mm
Height	2,896 mm
Bare Weight	4,913 kg
Pump Bay	Yes

PRODUCT COMPATIBILITY
Diesel Gasoline Lubricants Solvents

The GRANDE tank range is a premium above ground storage tank solution designed for harsh operating environments with minimal site preparation.

Pressed corners and a reinforced top means a robust tank for your fuel storage needs. The main points in this design are a curved tank roof finish, greater capacity for safe fill and the ability to see under the tank.

The Grande G12 fuel storage tank is constructed to an international ISO shipping container footprint for ease of transport and transfer. The footprint utilises the container lock dimensions and ensures ease of transport, saving your business time and money.

MULTI COMPARTMENT TANK

GRANDE tanks can be supplied with ready-to-use pumps, reels, meters and filtration. Standard and custom build add-on compartments can be specified to hold lubricants, coolant or waste oil as required.

Multi products within same tank footprint are available if required. End mounted security cabinets can be fitted including steel or roller shutter doors and internal spillage trays, to house pipe work, pumps, gauging, alarms and controls.

GRANDE TANKS OFFER A FAST, EASY AND CONVENIENT HYDROCARBON STORAGE SOLUTION.

STANDARD FEATURES

INCOMING FUEL / PRODUCT

80nb Tanker fill pipework.
Fire safe flanged ball valve, camlock adaptor & cap.
Non return valve.
Hydraulic overfill valve with optional unload pump.
Internal pipe work serviceable.
High level alarm; hazardous rated & battery powered.

OUTGOING FUEL / PRODUCT

Anti-siphon valve (foot valve).
Pipework terminates under walkway with ANSI flanges.
6″ and 4″ sockets in both manholes for the mounting of submersible pumps standard.
Pump suction line including priming point plug.

PUMP BAY

Pump bay complete with water/product drain valves.
Internal access for hoses from pylon kits.
Pylon kits with counter weights (optional).
Lockable bund doors with rubber dust seal.
Access ladder to work platform mounted on left or right hand side.
Bund ventilations.
Front earth connection.
Built in safety hand rail system.
Dual 50mm side wall cavity sockets.

*Conditions apply. Some features standard, some optional extras, depending on product range. Custom colours, coatings, dimensions and refuelling equipment packages are available upon request.

INTERNATIONAL CERTIFICATIONS

STANDARD SPECIFICATION

Double-walled tank designed and constructed to UL-142 and ULC-S601-14 compliance as standard.
Supplied with all statutory signage.
Safe fill capacities from 2,906 – 28,319 gallons.
Curved tank roof finish externally.
Designed to ISO container specifications (20’/40’/48’/52’).
In-built tank access ladder and platform.
One manway access point per tank (min).
Updraft vent pipe.
Calibrated aluminium anodized dipstick.
Interstitial space monitoring point with anodized dip stick.
Audible overfill protection alarm.
6″ and 4″ sockets for installation of submersible pumps.
Extra paint thickness based on 250-300 microns for extra protection during harsh climates.
Bunded cowling and dispensing area.
Dual hose high mast retractable units.
Lockable doors to pump bay and dispensing area.
Suitable for fuel farm configuration (master and slave).
Transportable via tilt tray, side loader or flatbed semi-trailer.

GET THE MOST OUT OF YOUR REFUELLING OPERATIONS

Your Grande tank is just the beginning. We offer upgrades to Smart Fuel Management Systems and Inline Filtration Units. Fully customised solutions to monitor usage, protect equipment and reduce downtime.

GRANDE DISPENSING OPTIONS

AC/DC electrical or engine driven dispensing equipment.
Bowser, dispenser units or retractable hose reel systems.
Heavy and / or light vehicle refueling.
Pump electrical switch box with start / stop / e-stop station.
Flow rates from 10.5gpm to 105gpm (105+gpm on request).
Bulk fuel dispensing unit (quick fill for onsite service trucks).
Fuel Management System compatible.
Outdoor payment terminal compatible (EFTPOS & credit card).

FLAMMABLE STORAGE

Please check the local regulation and install relevant emergency vent for flammable storage.

MULTI COMPARTMENTS TANK

We can design and build multiple compartments to hold different products within the same tank footprint. Store different fuel, lubricants, coolants, or waste oil in one footprint. Of course, conditions apply but you will be impressed with what we can do.

EVERY UNITY FUEL SOLUTIONS STORAGE TANK COMES WITH COMPLETE PEACE-OF-MIND

Fuel storage tanks in the UNITY GRANDE range:

GRANDE 12

11,000 Litre Above Ground Fuel Storage Tank

GRANDE 30

29,350 Litre Above Ground Fuel Storage Tank

GRANDE 68

65,570 Litre Above Ground Fuel Storage Tank

GRANDE 16

Safe Fill Level: 15,561 Litres
Capacity: 17,500 Litres
Length: 4,014 mm
Width: 2,438 mm
Height: 2,896 mm
Tare: 6,180 kg
Pump Bay: Yes

GRANDE 20 NPB

Safe Fill Level: 16,900 Litres
Capacity: 17,790 Litres
Length: 2,991 mm
Width: 2,438 mm
Height: 2,896 mm
Tare: 5,007 kg
Pump Bay: No

GRANDE 23 NPB

Safe Fill Level: 22,500 Litres
Capacity: 23,700 Litres
Length: 4,014 mm
Width: 2,438 mm
Height: 2,896 mm
Tare: 6,320 kg
Pump Bay: No

GRANDE 38 NPB

Safe Fill Level: 35,260 Litres
Capacity: 37,120 Litres
Length: 6,058 mm
Width: 2,438 mm
Height: 2,896 mm
Tare: 8,000 kg
Pump Bay: No

GRANDE 40 NPB

Safe Fill Level: 44,000 Litres
Capacity: 46,400 Litres
Length: 6,058 mm
Width: 2,438 mm
Height: 3,500 mm
Tare: 9,200 kg
Pump Bay: No

GRANDE 45

Safe Fill Level: 45,200 Litres
Capacity: 47,600 Litres
Length: 12,192 mm
Width: 2,438 mm
Height: 2,591 mm
Tare: 12,250 kg
Pump Bay: Yes

GRANDE 55 FL

Safe Fill Level: 52,500 Litres
Capacity: 55,000 Litres
Length: 12,192 mm
Width: 2,438 mm
Height: 2,591 mm
Tare: 12,300 kg
Pump Bay: Yes

GRANDE 55

Safe Fill Level: 57,850 Litres
Capacity: 60,900 Litres
Length: 12,192 mm
Width: 2,438 mm
Height: 2,591 mm
Tare: 12,800 kg
Pump Bay: Yes

GRANDE 75 NPB

Safe Fill Level: 71,720 Litres
Capacity: 75,490 Litres
Length: 12,192 mm
Width: 2,438 mm
Height: 2,896 mm
Tare: 14,020 kg
Pump Bay: No

GRANDE 80

Safe Fill Level: 78,790 Litres
Capacity: 82,940 Litres
Length: 14,630 mm
Width: 2,438 mm
Height: 2,896 mm
Tare: 16,150 kg
Pump Bay: Yes

GRANDE 82

Safe Fill Level: 81,700 Litres
Capacity: 86,100 Litres
Length: 12,192 mm
Width: 2,438 mm
Height: 3,550 mm
Tare: 16,050 kg
Pump Bay: Yes

GRANDE 89 NPB

Safe Fill Level: 89,300 Litres
Capacity: 94,000 Litres
Length: 12,192 mm
Width: 2,438 mm
Height: 3,500 mm
Tare: 16,150 kg
Pump Bay: No

GRANDE 90 NPB

Safe Fill Level: 85,690 Litres
Capacity: 90,200 Litres
Length: 14,630 mm
Width: 2,438 mm
Height: 2,896 mm
Tare: 16,350 kg
Pump Bay: No

GRANDE 90

Safe Fill Level: 87,820 Litres
Capacity: 92,450 Litres
Length: 14,630 mm
Width: 2,438 mm
Height: 3,200 mm
Tare: 17,250 kg
Pump Bay: Yes

GRANDE 100 NPB

Safe Fill Level: 95,660 Litres
Capacity: 100,700 Litres
Length: 14,630 mm
Width: 2,438 mm
Height: 3,200 mm
Tare: 17,450 kg
Pump Bay: No

GRANDE 100

Safe Fill Level: 97,185 Litres
Capacity: 102,300 Litres
Length: 14,630 mm
Width: 2,438 mm
Height: 3,550 mm
Tare: 18,600 kg
Pump Bay: Yes

GRANDE 110 NPB

Safe Fill Level: 107,200 Litres
Capacity: 112,850 Litres
Length: 14,630 mm
Width: 2,438 mm
Height: 3,550 mm
Tare: 18,900 kg
Pump Bay: No

GRANDE 110

Safe Fill Level: 107,200 Litres
Capacity: 112,850 Litres
Length: 15,849 mm
Width: 2,438 mm
Height: 3,550 mm
Tare: 20,080 kg
Pump Bay: Yes
