Diesel / DEF Transfer Tanks

BLOC DUAL FLUID TANKS

Unity Fuel Solutions’ DEF Transfer Tanks are the best solution for the storage and dispensing of Diesel and Diesel Exhaust Fluid (DEF) – from 2,420 to 4,370 litres..

They offer a flexible, safe and integrated dual fluid storage solution. Connect up a DEF transfer system and it is guaranteed to streamline your fuel operations. A practical design ensures a fast, easy and convenient installation in any location, indoors or outdoors.

BLOC DEF TRANSFER TANKS OFFER A FAST, EASY AND CONVENIENT DUAL FLUID STORAGE  SOLUTION.

These mobile and modular units ensure fast and easy transportation to site, are easily relocatable and require minimal site works or preparation. A place-fill-and-pump installation process offering versatility and speed on commissioning.

The freestanding design allows for 360° tank viewing and inspection. External steel tank shell and internal stainless steel DEF tank construction with an internal thermal insulation and high-grade paint finish ensures longer durability of both tank and product in the elements.

Our double-walled tanks are designed as integral secondary  containment and therefore do not require independent  bunds for leak containment. Double-walled tank = SFL primary tank + interstitial space + secondary external tank.

Diesel DEF transfer tank canada




PRODUCT COMPATIBILITY

Diesek Fuel Tank  DIESEL     DEF

EVERY UNITY FUEL SOLUTIONS STORAGE TANK COMES WITH COMPLETE PEACE-OF-MIND…



STANDARD FEATURES

  • Meets UL-142, ULC-S601-14 and  UN-31-A/Y compliance as standard.
  • Double-walled tank construction consists of an inner 5mm primary diesel tank with 3mm outer secondary steel tank.
  • DEF tank constructed from grade 304 stainless  steel and lined with thermal insulation barrier.
  • Baffled internally to reduce product movement should the unit be moved with contents.*
  • Both tank manways accessible and removable for internal tank maintenance and cleaning.

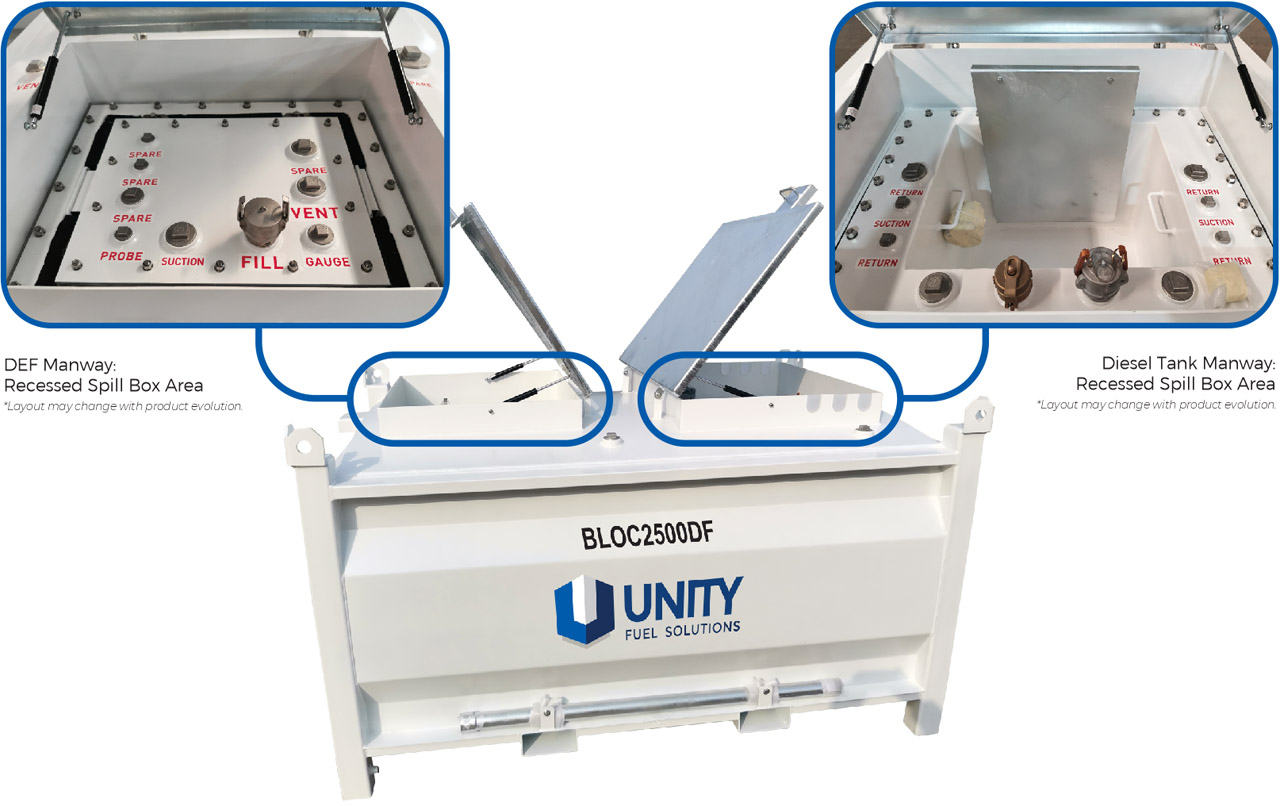

  • Diesel manway – Recessed spill box/pump cabinet with pump mounting bracket.
  • DEF manway – Easy access for pumping equipment.
  • Both tank manways housed under heavy duty lockable lid for additional fuel security.
  • Sectional cut-outs on sides of manway spill box to allow flexible hoses/pipework to external requirements (i.e: generators).
  • Curved roof feature for water drainage to top of tank.*
  • Diesel tank complete with aluminium gauged dipsticks, 1 x galvanized updraft vent breather system and multiple port fittings.
  • DEF tank has provision for tank gauges and pressure vacuum vents.
  • Air pressure tested prior to leaving our factory.
  • Mobile and modular design allows for ease of transportation.
  • 250-300 Micron thickness ‘WHITE’ paint finish as standard.
  • DEF and combustible liquid safety labels and decals supplied as standard.
  • Forklift pockets and certified tie down/lifting points at
    each corner.

MANWAY (INSIDE LID)

  • 2 x 1” Spare Ports (NPT)
  • 1 x 1.5” Spare Ports (NPT)
  • 1 x 1” Probe Ports (NPT)
  • 1 x 2” Suction Ports (NPT)
  • 1 x 2” Fill Point
  • 1 x 1.5” Gauge Point
  • 1 x 2” Vent Port (BSP)
  • 1 x 2” Spare Socket (NPT)

EXTERIOR OF TANK

  •  x 2” Interstitial Dip / Vent
  • 1 x 2” Suction Port (BSP)
  • 1 x 4” Submersible Pump Provision (BSP & NPT)
  • Forklift pockets, certified tie down / lifting points at each corner.
  • Tanks can be stacked 4 high empty and 2 high full.

DIESEL MANWAY

  • 1 x 2” Fill Point
  • 1 x 2” Dip Point
  • 2 x 2” Suction Ports (BSP & NPT)
  • 2 x 2” Return Ports (BSP & NPT)
  • 2 x 1” Suction Ports (BSP & NPT)
  • 2 x 1” Return Ports (BSP & NPT)

DEF Transfer Tanks For Sale

BLOC 2500-DF
DEF Transfer Tank
Diesel Safe Fill Level

2,190 Litres

Diesel Capacity

2,310 Litres

DEF Safe Fill Level

230 Litres

DEF Capacity

245 Litres

Length

2,274

Width

1,674 mm

Height

1,309 mm

Bare Weight

1,370 kg

Baffle

YES

BLOC 4500-DF
DEF Transfer Tank
Diesel Safe Fill Level

3,950 Litres

Diesel Capacity

4,200 Litres

DEF Safe Fill Level

420 Litres

DEF Capacity

442 Litres

Length

2,274

Width

2,274 mm

Height

1,309 mm

Bare Weight

1,920 kg

Baffle

YES


Contact us for alternative capacities and customisation options.
