HEDRA ‘Cube Style’ Stationary Fuel Tanks are a value-engineered solution for the storage and dispensing of diesel, gasoline and lubricant oils – from 960 to 10,250 litres.
They offer a flexible solution to storing combustible liquid as well as improving fuel dispensing and management solutions. A practical stationary design ensures a fast, easy and convenient installation in any location, indoors or outdoors.
HEDRA TANKS ARE A VALUE-ENGINEERED FUEL STORAGE SOLUTION
These modular units ensure fast and easy transportation to site, with minimal site works or preparation required. A place, fill-and-pump installation process offering versatility and speed on commissioning.
The freestanding ‘cube style’ design allows for 360° tank viewing and inspection. High-grade paint finish ensures longer durability in the elements.
DURABLE STATIONARY DESIGN WITH DOUBLE-WALL CONTAINMENT FOR ADDED SAFETY AND SECURITY.
Our double-walled tanks are designed as integral secondary containment and therefore do not require independent bunds for leak containment. Double-walled tank = SFL primary tank + interstitial space + secondary external tank.
Double-walled tank construction consists of a 4mm primary steel tank and a 4mm secondary steel tank.
Baffled internally for structural integrity and to reduce product movement.
Accessible and removable tank manway for internal tank maintenance and cleaning.
Recessed spill box area under lockable lid on gas struts to secure transfer pump.
Sectional cut-outs on sides of spill box to allow flexible hoses or pipework to external requirements (i.e: generators).
Complete with aluminium gauged dipsticks, 1 x galvanized updraft vent breather system and multiple port fittings.
Air pressure tested prior to leaving our factory. Mobile and modular design allows for ease of transportation when empty.
External ‘WHITE’ paint finish as standard. Other colour options are available upon request. *
Appropriate safety labels and decals supplied as standard.
Tie down/lifting points at each corner.
2 x forklift pockets to all sides.
*Conditions apply. Some features standard, some optional extras, depending on product range. Custom colours, coatings, dimensions and refuelling equipment packages are available upon request.
MOBILE AND MODULAR
Lightweight and efficient stationary design
Practical ‘cube style’ modular finish
2 x forklift pockets to all sides
Tie down/lifting points at each corner
Tanks can be stacked 4 high empty
EXTERIOR OF TANK
1 x 2” Vent Port
1 x 2” Free port
2 x 4” Vent port (up to 6” on some models)
1 x 3” Free port
1 x 2” Free vent
1 x 2” Interstitial Dip / Vent
2 x 2” Free suction ports
Arrangement/set-up dependent on tank size*
MANWAY (INSIDE LID)
1 x 1 ¼” Suction Port
1 x 2” Fill Port • 1 x 2” Dip Port
1 x Tank gauge
1 x 1 ¼” Return Port (1¼” – 1” reducer)
1 x 1¼” Suction Port (1¼” – 1” reducer)
1 x Pump bracket
1 x Nozzle holder
Arrangement/set-up dependent on tank size*
HEDRA ‘Cube-style’ Stationary Fuel Tanks For Sale

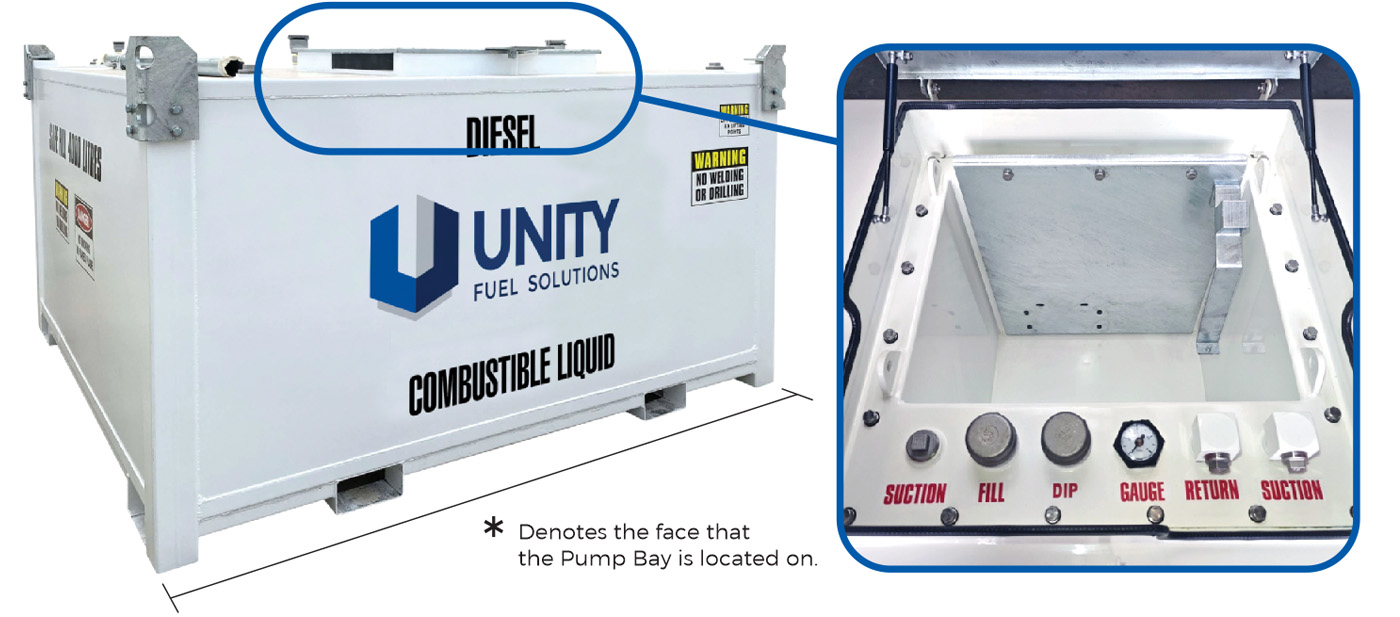

( * ) Denotes the face that the Pump Bay is located on.
HEDRA 1000
960 Litre Cube-style Stationary Fuel Storage Tank
Safe Fill Level
960 Litres
Capacity
1,010 Litres
Length *
1,374
Width
1,086 mm
Height
1,270 mm
Bare Weight
714 kg
HEDRA 2000
2,925 Litre Cube-style Stationary Fuel Storage Tank
Safe Fill Level
1,925 Litres
Capacity
2,030 Litres
Length *
2,294 mm
Width
1,086 mm
Height
1,270 mm
Bare Weight
1,084 kg
HEDRA 3000
2,935 Litre Cube-style Stationary Fuel Storage Tank
Safe Fill Level
2,935 Litres
Capacity
3,090 Litres
Length *
2,294 mm
Width
1,546 mm
Height
1,270 mm
Bare Weight
1,269 kg
HEDRA 4000
4,110 Litre Cube-style Stationary Fuel Storage Tank
Safe Fill Level
4,110 Litres
Capacity
4,330 Litres
Length *
2,294 mm
Width
2,084 mm
Height
1,270 mm
Bare Weight
1,570 kg
HEDRA 10000
10,250 Litre Cube-style Stationary Fuel Storage Tank
Safe Fill Level
10,250 Litres
Capacity
10,790 Litres
Length
4,867 mm
Width *
2,294 mm
Height
1,270 mm
Bare Weight
2,864 kg
Contact us for alternative capacities and customisation options.
