Aviation Fuel Storage Tanks

Fuel Storage Tanks for Avgas or Jet A1

(Canada)

Unity Fuel Solutions’ Aviation fuel storage tanks are a self-contained aboveground fuel storage tank and fuel management solution for aviation fuel – from 1,000 to 107,400 litres.

If you’re involved in the aviation industry you understand that the cleanliness and quality of aviation fuel is vital to the safety of the aircraft, passengers and crew.

It is vital to store aviation fuel only in specialist tanks designed for Aviation Gasoline (AVGAS) or Turbine Fuel / Jet Fuel (Jet A1). That is why we designed and developed our aboveground double wall aviation fuel storage tanks range. A speciality product built for the airline industry.

AVIATION FUEL STORAGE REGULATIONS

In the Canada, if you store over 1,000 litres of fuel aboveground for commercial purposes you must ensure you have a self-contained bunded (upstand) construction for spillage containment. This goes for storing aviation fuel in any location, from commercial airfields to private airstrips.

Bunded areas should be sized to hold 110% of the capacity of the largest storage tank and are traditionally constructed from concrete or masonry adding to project costs and build times.

UNITY AVIATION FUEL TANKS REMOVE THE NEED FOR TRADITIONAL BUND WALL CONSTRUCTION AND CONTAINMENT

Our AVIATION series aboveground fuel tanks are manufactured using a double-walled construction, essentially a tank within a tank.

This integral secondary containment system creates an internal self-bunded solution and ensures traditional bund wall containment areas are no longer required.

AVIATION Double-Walled Tank = 100% Stainless Steel Primary Tank + 10% interstitial space + Secondary Mild Steel Outer Tank which equates to a bunded area of 110% of the storage tanks capacity. This complies with all secondary containment requirements for aboveground storage tanks.

OUR AVIATION TANKS COMPLY WITH ALL STATE AND FEDERAL ABOVEGROUND STORAGE TANK REGULATIONS AND FAA GUIDELINES





EVERY UNITY FUEL SOLUTIONS STORAGE TANK COMES WITH COMPLETE PEACE-OF-MIND…



AVOIDING THE RISK OF AVIATION FUEL CONTAMINATION

The number one priority for storing aviation fuel is to avoid contamination. By law, any part of the tank that could come into contact with aviation fuel must be stainless steel so that there is no danger of rust contamination.

Our tanks have a GR 304 stainless steel inner tank with GR 304 stainless steel pump lines and fittings as standard. This not only meets all safety requirements giving you complete peace of mind but also ensures a long-lasting and durable storage and refueling system.

Another big enemy of aviation fuel is water. The excess build-up of condensation within a storage tank can lead to fuel being comprised in two ways:

  1. Water and fuel being drawn from the storage tank and transferred to the aircraft.

  2. Water promoting the growth of microbes which degrade fuel quality over time. Contaminated fuel transferred to the aircraft.

Both potentially leading to catastrophic engine failure, something best avoided at all cost.

UNITY Aviation fuel tanks address these challenges in a few ways:

  1. A sloping 50:1 floor on the internal stainless tank ensures water build-up can be drained easily and regularly as part of a maintenance program.

  2. Baffle free means hassle free. UNITY AVIATION TANKS are made without an interior baffle. This removes the danger of water and equipment being caught within the internal design of the tank. Without a baffle, you lower the risks of potential problems in the future.

AVIATION FUEL MANAGEMENT SOLUTIONS

Our team has years of experience in the safe storage, handling and daily management of fuel within the aviation industry. We always take the time to fully understand your needs as each situation is unique to your requirements.

UNITY AVIATION TANKS OFFER A FAST, EASY AND CONVENIENT FUEL STORAGE AND REFUELING SOLUTION IN ANY LOCATION

PRODUCT COMPATIBILITY
  AVGAS       JET=A1


Aviation Fuel Storage Tanks Ranging
from 1,000 to 107,400 litres

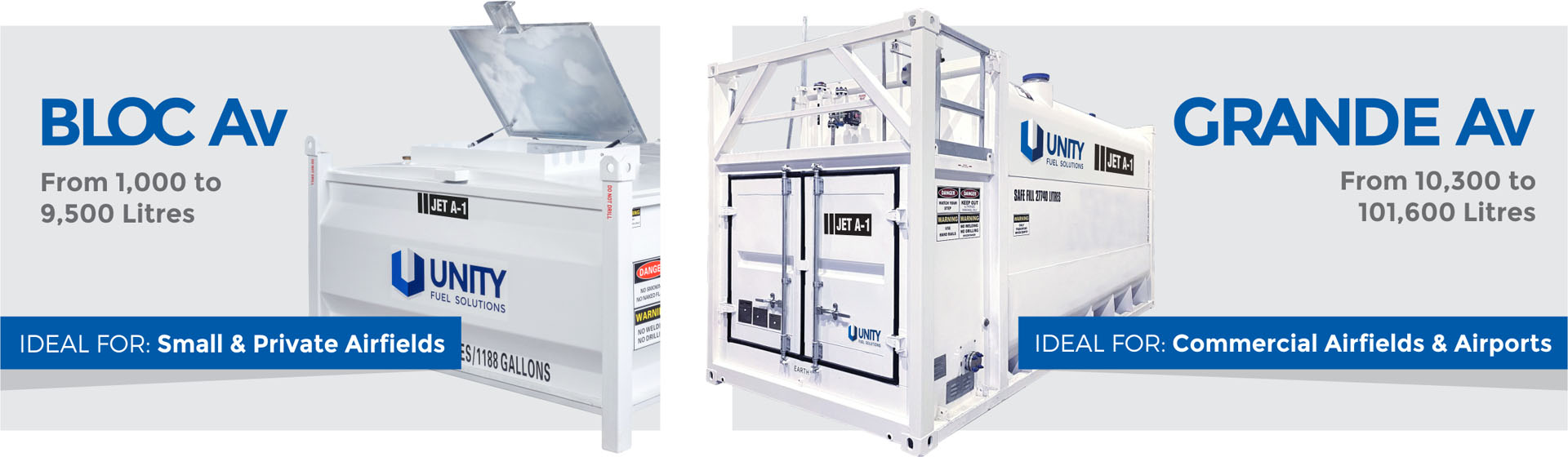

BLOC Aviation Fuel Tanks

IDEAL FOR: Small & Private Airfields

1,000 litre aviation fuel tank
BLOC 1000 Av
1,000 Litre Aviation Fuel Storage Tank
Safe Fill Level

1,000 Litres

Capacity

1,220 Litres

Length

1,864 mm

Width

1,100 mm

Height

1,309 mm

Bare Weight

870 kg

Bafflle

Yes

2,500 litre aviation fuel tank
BLOC 2500 Av
2,500 Litre Aviation Fuel Storage Tank
Safe Fill Level

2,500 Litres

Capacity

2,750 Litres

Length

2,274 mm

Width

1,674 mm

Height

1,309 mm

Bare Weight

1,230 kg

Bafflle

Yes

4,500 litre aviation fuel tank
BLOC 4500 Av
4,500 Litre Aviation Fuel Storage Tank
Safe Fill Level

4,500 Litres

Capacity

4,800 Litres

Length

2,774 mm

Width

2,274 mm

Height

1,309 mm

Bare Weight

1,479 kg

Bafflle

Yes

6,000 litre aviation fuel tank
BLOC 6000 Av
6,000 Litre Aviation Fuel Storage Tank
Safe Fill Level

6,000 Litres

Capacity

6,200 Litres

Length

3,574 mm

Width

2,274 mm

Height

1,309 mm

Tare

2,150 kg

Bafflle

Yes

10,000 litre aviation fuel tank
BLOC 10000 Av
10,000 Litre Aviation Fuel Storage Tank
Safe Fill Level

10,000 Litres

Capacity

11,500 Litres

Length

6,058 mm

Width

2,438 mm

Height

1,295 mm

Bare Weight

4,450 kg

Bafflle

Yes


GRANDE Aviation Fuel Tanks

IDEAL FOR: Commercial Airfields & Airports

11,240 litre aviation fuel tank
GRANDE 12 Av
11,240 Litre Aviation Fuel Storage Tank
Safe Fill Level

11,240 Litres

Capacity

11,839 Litres

Length

2,991 mm

Width

2,438 mm

Height

2,896 mm

Bare Weight

4,825 kg

Pump Bay

Yes

29,350 litre aviation fuel tank
GRANDE 30 Av
29,350 Litre Aviation Fuel Storage Tank
Safe Fill Level

29,350 Litres

Capacity

30,900 Litres

Length

6,058 mm

Width

2,438 mm

Height

2,896 mm

Bare Weight

7,705 kg

Pump Bay

Yes

65,750 litre aviation fuel tank
GRANDE 68 Av
65,570 Litre Aviation Fuel Storage Tank
Safe Fill Level

65,570 Litres

Capacity

69,020 Litres

Length

12,192 mm

Width

2,438 mm

Height

2,896 mm

Bare Weight

13,570 kg

Pump Bay

Yes


STANDARD FEATURES

  • All tanks meet UL-142, ULC-S601-14 compliance as standard. Bloc Av 1000 – 6000 additional UN-31-A/Y compliance.
  • Double-walled structural design.
  • 6mm thick mild steel outer tank wall.
  • 6mm thick GR 304 stainless steel inner wall.
  • GR 304 stainless steel fuel lines, piping and fittings.
  • Floating suction (Grande Av only).
  • Overfill protection system (Grande Av only).
  • High level alarm (Ex-i – Intrinsic safe / Grande Av only).
  • Emergency venting.
  • Vent Pipe: Free Vent.
  • Pressure Vacuum (optional).
  • Fluid Level Dipstick.
  • Sloping 50:1 floor to collection sump with sampling facilities.
  • Sampling cabinet (supplied loose, Grande tanks only).

OPTIONS

  • GR 316 stainless steel upgrade.

*Conditions apply. Some features standard, some optional extras, depending on product range. Custom colors, coatings, dimensions and refueling equipment packages are available upon request.




MORE AVIATION FUEL STORAGE TANKS IN THE GRANDE Av RANGE

GRANDE 20 Av

17,274 Litres

GRANDE 38 Av

35,380 Litres

GRANDE 55 Av

57,930 Litres

GRANDE 75 Av

71,720 LITRES

GRANDE 90 Av

85,975 Litres

GRANDE 100 Av

95,900 Litres

GRANDE 110 Av

107,400 Litres
